Flexible Silicone Rubber Strip Heater For Industrial Heating

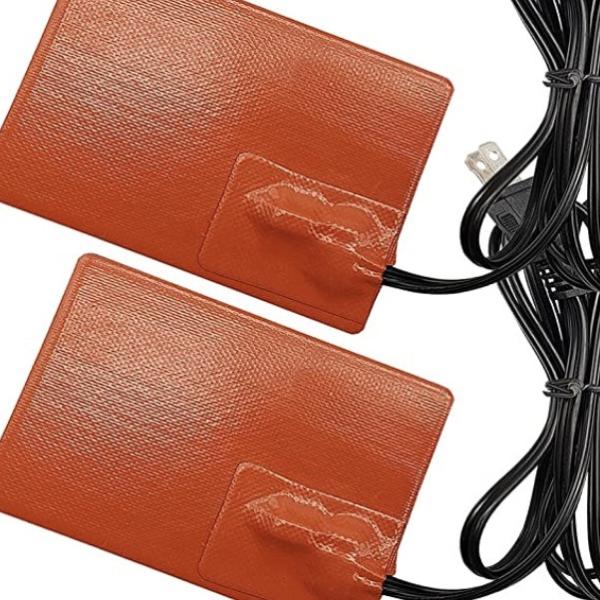

Silicone Rubber Heating Pad
Silicone rubber heaters have two types of heating circuits; the
wire-wound style and the etched-foil style. Each style has its
unique characteristics and should be selected accordingly.
Wire-wound circuits are formed by creating a specific pattern out
of resistance wire that is spiraled around a fiberglass core. The
etched foil circuit is a flat circuit that is formed by chemically
etching a resistive circuit out of nickel alloy resistance foil.
Flexible Silicone Rubber Heater Specifications:
Item | silione rubber heater |
Dimension | customize(any size,any shape) |
Maximum operating | 250℃ |
Thickness | 1.5mm |
Voltage | 12v,24v,110v,120v,220v,230v,240v,360v (AC & DC) |
Wattage | 0.3-1w/cm2 |
Thermostat | Analog or Digital display(optional) |
thermistor | NTC,PT100,or others |
3M self-adhesive | YES/NO(optional) |
Flexible Silicone Rubber Heater Advantages:
1. Design according to actual shape and dimension, and your
equipment.
2. Moisture-proof chemical defense silicon rubber material makes
the service life of heater much longer.
3. It can be simply pasted or attached to your component by
vulcanizing, adhesive or fastener, etc.
4. High thermal efficiency: The temperature of the electric heating
film itself is only tens of higher than that of the liquid when
heating, which is 2-3 times energy saving than ordinary electric
stoves.
5. Easy application: Its self-insulation and free-of-open-fire
property greatly help simplify the techniques of heat preservation
and thermal insulation.
6. Its wide range of temperature, 250°C ~300°C, can not be simply
achieved by other electrical appliances.
7. Long service time: Under normal use, the product almost can be
permanently and continuously used because nickel and chrome
materials are durable to any corrosion, and the silicon has a high
surface resistance up to 100kg/cm², which is uncomparable for any
other electric heaters.
8. Made in any size, the temperature of the product can be
precisely adjusted by temperature controller.
Flexible Silicone Rubber Heater Application
The silicone rubber heater can be used for mixing and heat
preservation (oil drum heater) in industrial equipment, pipes,
tanks, and can be used in blood analyzer, corset, test tube
heating, etc..
It can be directly wrapped around the surface of the object to be
heated when in use.
